Geometric and shaped windows give a Riviera Beach home the kind of architectural presence that rectangular glass simply can’t. We’re talking triangles, hexagons, octagons, half-rounds, and true radius curves, all fabricated with laminated impact glass and engineered for South Florida wind zones. TruePane Windows & Doors has installed these custom configurations across Riviera Beach, from Singer Island waterfront properties to the neighborhoods off Blue Heron Boulevard. Every unit is made to order, so your opening dictates the geometry, not the other way around. If you’re planning a feature window for a gable, a stairwell, or an entry foyer, call (786) 829-6722 and we’ll walk you through what’s possible.

Call (786) 829-6722

Product Overview - Geometric & Shaped Windows

Most window manufacturers build rectangles. Geometric and shaped windows are the exception because they have to be. A triangular unit over a front door, an octagonal accent in a great room, a curved-top window facing the Intracoastal, all of these start as custom layouts that get fabricated to your exact opening dimensions. In hurricane-prone construction, that’s where it gets tricky. A shaped window carries the same wind load as a standard window, but the frame has to distribute that pressure across angles and arcs instead of straight runs.

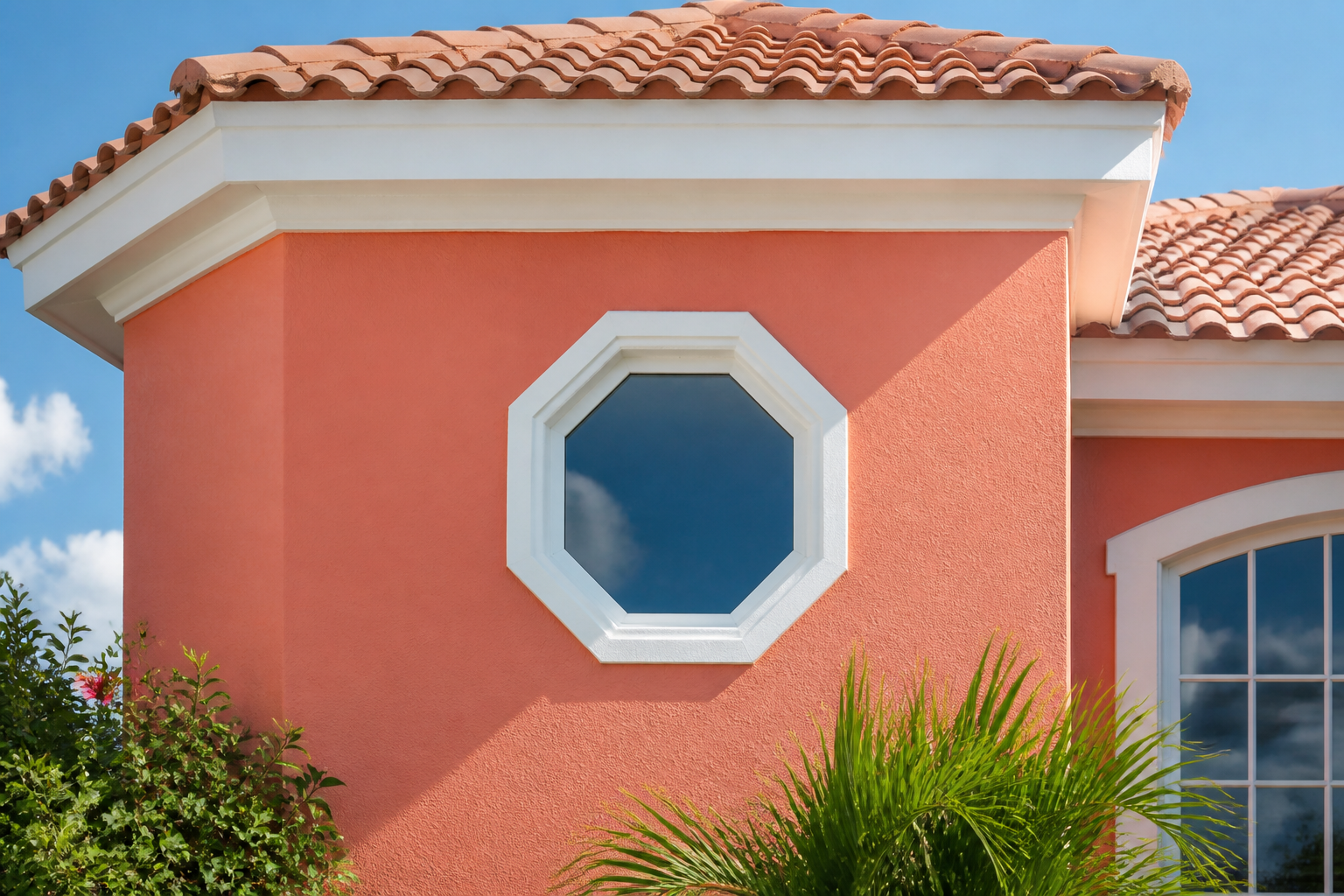

That’s why TruePane Windows & Doors only carries shaped impact windows from lines we trust: PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass. Each one is built with reinforced aluminum or vinyl framing and laminated impact glass, then run through the same testing protocols as any other HVHZ-rated product we install. You get the architectural detail without compromising the envelope of the home. We’ve put octagonal units in Mediterranean-style homes near Ocean Reef Park and curved transoms in mid-century builds along Lake Worth Lagoon. The glass holds. The frame holds. The look is exactly what the homeowner wanted.

Technical Specifications

• Frame materials: Aluminum or vinyl, selected based on structural requirements and the finish you want.
• Maximum size: Custom fabricated to order. There’s no standard size cap because there’s no standard opening.
• Glass options: Laminated impact glass with PVB interlayer, Low-E insulated glass, tinted glass, clear glass.
• Color and finish options: White, almond, bronze, black, tan.
• Design pressure: Matched to your wind zone, up to +/-100, never higher.
• Compliance documentation: Miami-Dade NOA and Florida Product Approval numbers available per configuration, verified on your specific quote.
• Code compliance: Engineered to Florida Building Code High-Velocity Hurricane Zone requirements.
• Installation standard: Installed per AAMA 2400/2410 practice with AAMA 812 low-expansion foam perimeter sealant.

Hurricane & Compliance Performance

Laminated Impact Glass
The glass is built with a PVB (polyvinyl butyral) interlayer sandwiched between panes. When debris hits, the glass may crack but it stays in the frame. That’s the core of impact protection: no breach, no pressurization, no blowout.

Miami-Dade NOA / Florida Product Approval
Each geometric configuration we quote carries its own NOA or Florida Product Approval documentation. The numbers are issued per configuration, not per product line, so we verify the specific approval on your quote before anything gets ordered.

FBC / HVHZ Compliance
Riviera Beach falls under the Florida Building Code High-Velocity Hurricane Zone. Every shaped window we sell is engineered to meet FBC HVHZ requirements, which are stricter than the rest of the state for a reason.

TAS 201 / TAS 202 / TAS 203 Testing Context
HVHZ-rated products are tested under the TAS protocol family. TAS 201 covers large-missile impact, TAS 202 covers cyclic wind-pressure loading, and TAS 203 covers forced-entry resistance. If a window passes all three, it’s earned its place in a coastal home.

Design Pressure for Your Wind Zone
We match design pressure to your specific wind zone, up to +/-100 and never higher. Over-specifying sounds good in a brochure but adds cost without adding protection. We quote what your opening actually requires.

Energy Performance
Low-E and insulated glass options are available on most geometric configurations. For a shaped window that gets direct afternoon sun, a Low-E coating and argon fill can meaningfully reduce heat gain without changing the look of the glass.

Color & Glass Options

Finish selection matters more on a shaped window because the frame is a visible design element, not a thin border. White and almond read clean against stucco and are common on newer Riviera Beach construction. Bronze and black create a sharper, more modern line that works well on contemporary homes and looks striking against light interior walls. Tan is a favorite for Mediterranean and Spanish-style homes where the window needs to blend with warm exterior tones rather than contrast them.

Glass comes down to what the room needs. Clear laminated impact glass is the default for maximum light and unobstructed views. Tinted glass helps in rooms that get punishing western exposure. Low-E insulated glass is the pick for energy performance, especially on larger shaped units where the glass area is significant. We’ll help you match the glass package to the room’s orientation and how you actually use the space.

Installation by TruePane Windows & Doors in Riviera Beach

A NOA-rated window installed badly is just an expensive hole in the wall. The approval rating assumes a proper installation: square, level, plumb, and sealed to the structure per manufacturer and code requirements. That’s the entire reason we install what we sell, and why we follow AAMA 2400/2410 installation practice on every job we do in Riviera Beach.

Our process starts with a pre-installation inspection. We measure the rough opening, check the framing for rot or deflection, and verify the substrate can handle the anchoring the window requires. Then we set the unit level, plumb, and square, shimming as needed so the frame is not twisted or racked. For the perimeter seal, we use AAMA 812 low-expansion foam followed by the specified exterior sealant. Low-expansion matters: too much foam pressure can deflect a vinyl frame and ruin the operation of the window.

Riviera Beach brings its own considerations. Coastal exposure means salt air and high wind loads, and the local permitting office expects HVHZ-compliant product submittals. We know what the city looks for on a permit package and we make sure your documentation matches the windows actually being installed. After the unit is set and sealed, we run a water test and walk the interior and exterior with you before we call the job done. Improper installation compromises the entire engineered system, and we’re not willing to put our name on that kind of work.

Frequently Asked Questions - Geometric & Shaped Windows

What wind zone or design pressure is the Geometric & Shaped Windows rated for?
These windows are engineered to Florida Building Code High-Velocity Hurricane Zone requirements and matched to your specific wind zone, with design pressures up to +/-100, never higher. We determine the exact requirement based on your property’s location in Riviera Beach and the window’s placement on the structure. Call (786) 829-6722 and we’ll pull the wind-zone data for your address.

What is the lead time on a custom shaped window?
Because every geometric and shaped unit is fabricated to order, lead times run longer than standard rectangle windows. Typical fabrication timelines depend on the configuration, glass package, and finish, but you should plan for several weeks from approved shop drawings to delivery. We confirm the lead time on your quote so there are no surprises mid-project. Call (786) 829-6722 for current timelines.

Does a geometric window require a Miami-Dade NOA or Florida Product Approval submittal for my permit?
Yes. Riviera Beach building permits for HVHZ window replacement will require product approval documentation. Each geometric configuration carries its own NOA or Florida Product Approval number, and we provide the correct documentation for your specific units so the permit submittal goes through cleanly. That’s part of the service when you buy and install through TruePane Windows & Doors.

Can I customize the size or configuration?
Yes. The entire point of a geometric and shaped window is that it’s built to your opening. Triangular, hexagonal, octagonal, curved, half-round, trapezoid, we’ve done all of them across Riviera Beach. You give us the rough opening dimensions and the shape you want, and we handle the engineering, approval documentation, and fabrication. Call (786) 829-6722 to discuss your layout.

How do I maintain the frame?
Maintenance depends on the frame material. Aluminum frames need an occasional rinse with mild soap and water to clear salt accumulation in coastal areas like Riviera Beach, and the weep holes should stay clear so drainage works. Vinyl is generally wipe-clean. Avoid abrasive cleaners on either material. We’ll walk you through the specifics for your finish and frame material at installation.

Get a Quote - Geometric & Shaped Windows in Riviera Beach

If you’re planning a shaped window for a build or replacement in Riviera Beach, the first step is a free on-site measurement. We’ll check the opening, confirm the wind-zone requirements, and put together a written quote with the approval documentation to back it up. Call (786) 829-6722 to schedule your measurement, or reach out and we’ll start the conversation today.

Written by the team at TruePane Windows & Doors, serving Riviera Beach, FL and surrounding coastal communities with hurricane-impact windows and doors.
